| @ | GPD-4303S | GPD-3303S | GPD-2303S | GPD-3303D | | OUTPUT | | Channel | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH1 | CH2 | CH1 | CH2 | CH3 | | Voltage | 0~30V | 0~5V / 5.001~10V | 0~5V | 0~30V | 2.5V/ 3.5 / 5.0V | 0~30V | 0~30V | 2.5V/ 3.5 / 5.0V | | Current | 0~3A | 0~3A / 0~1A | 0~1A | 0~3A | 0~3A | 0~3A | 0~3A | 0~3A | | CONSTANT VOLTAGE OPERATION | | Regulation | Line Regulation…0.01%+3mV | | @ | Load Regulation…0.01%+3mV(rating current …3A) | | @ | …0.02%+5mV(rating current>3A) | | Ripple | …1mVrms(5Hz~1MHz) | | Noise | …10mVpp(5Hz~1MHz) | | Recover Time | …100ƒÊS(50% Load Change, Minimum Load 0.5A) | | Temp. Coefficient | …300ppm / Ž | | Output Range | 0 to rating current continuously adjustable | | CONSTANT CURRENT OPERATION | | Regulation | Line Regulation…0.2%+3mA | | @ | Load Regulation…0.2%+3mA | | Ripple Current | …3mArms | | Output Range | 0 to rating current continuously adjustable | | TRACKING OPERATION | | Regulation of PAR | Line Regulation…0.01%+3mV | | @ | Load Regulation…0.01%+3mV(rating current …3A) | | @ | …0.02%+5mV(rating current>3A) | | Regulation os SER | Line Regulation…0.01%+5mV | | @ | Load Resulation…100mV | | @ | Tracking Error …0.5%}10mV(10V~30V no load) | | @ | with load added…300mV | | @ | …0.5%}30mV(0V~9.99V no load) | | @ | with load added…300mV | | Tracking Error | …0.1%+10mVof Master(0~30V)(No Load, with load add load regulation…100mV) | | METER | | Display | Voltage:4 3/4 digits 0.4" LED Display | Voltage:2 3/4 digits 0.4" LED Display@@ | | @ | Current:3 3/4 digits 0.4" LED Display | Current:2 3/4 digits 0.4" LED Display@@ | | Resolution | Voltage:1mV | Voltage:100mV | | @ | Current:1mA | Current:10mA | | Program Accuracy(25}5Ž) | Voltage: }(0.03% of RDG+ 10 digits) | Voltage: }(0.5% of RDG+ 2 digits) | | @ | Current: }(0.3% of RDG + 10 digits) | Current: }(0.5% of RDG+ 2 digits) | | Readback Accuracy(25}5Ž) | Voltage: }(0.03% of RDG+ 10 digits) | Voltage: }(0.5% of RDG+ 2 digits) | | @ | Current: }(0.3% of RDG + 10 digits) | Current: }(0.5% of RDG+ 2 digits) | | CH3 SPECIFICATIONS | | Output Voltage | (2.5V/3.3V/5.0V)}8% | | Output Current | 3A | | Regulation(25}5Ž) | Line Regulation…5mV | | @ | Load Regulation …15mV | | Ripple & Noise | …2mVrms | | KEY LOCK | | Yes | | MEMORY SAVE / RECALL | | 4 Sets | | POWER SOURCE | | AC 100V/120V/220V/230V}10%,50/60Hz | | DIMENSION & WEIGHT | | 210(W) x 130(H) x 265(D) mm, Approx .7 kg |
User Manual X 1 , Power Cord X 1 GPD-2303S Test Lead GTL-104A x 2 GEuropean Test Lead GTL-204A x 2, GTL-201A x 1
GPD-3303S Test Lead GTL-104A x 2 , GTL-105A x 1GEuropean Test Lead GTL-203A x 1, GTL-204A x 2, GTL-201A x 1
GPD-4303S Test Lead GTL-104A x 2 , GTL-105A x 2GEuropean Test Lead GTL-203A x 2, GTL-204A x 2, GTL-201A x 1
GPD-3303D Test Lead GTL-104A x 2 , GTL-105A x 1GEuropean Test Lead GTL-203A x 1, GTL-204A x 2, GTL-201A x 1
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|

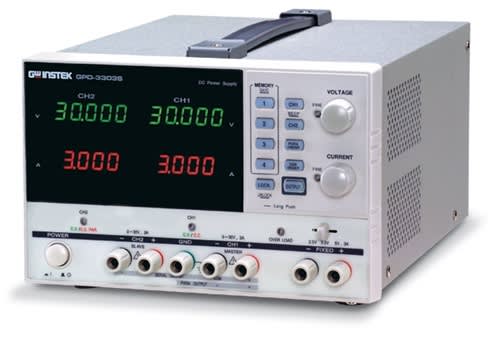

Descripcion
La serie GPD-X303S contiene la tecnología
superior y alta calidad que GW Instek había establecido a través de su larga
historia de diseño de la fuente de alimentación y manufactura.
La serie
GPD-X303 ofrece panel de control digital, gran pantalla, los indicadores LED
brillantes, resolución de salida alta, 4 juegos de memoria de configuración,
control remoto USB e inteligente de control del ventilador de enfriamiento.
Además, la serie GPD-X303S proporciona una fácil operación, una amplia
selección de configuración del panel y la operación, una amplia selección de
ajustes del panel. Todas estas características hacen que el X303-GPD sea una
excelente opción.
- 2/3/4 salida aislada Independiente
- 4 Conjuntos de Representación LED: 3 dígitos después del punto decimal
- Resolución mínima:
- 1 mV / 1 mA (GPD-2303D / GPD-3303S / GPD-4303S)
- 100 mV / 10 mA (GPD-3303D)
- Panel de control digital (interruptor codificador rotatorio, llave de goma con indicador)
- Operación, grueso / control de volumen bien fácil de usar
- 4 Conjuntos Guardar / Recall
- Key-Lock
- Salida de encendido / apagado
- Serie de seguimiento y el modo paralelo
- Ventilador de refrigeración inteligente lograr bajo nivel de ruido
- Interfaz USB estándar
- PC Software & USB Driver
- controlador Labview
|
|
|
|
|
|
|
|
|
