| Technical Specifications | | Power quality measurement standards | | Conformance | IEC 61999-1-4 Class 1, IEC 61000-4-30 Class A or B depending on measurement function, IEEE519, IEEE1159, IEEE1459 and EN50160 | | Clock/calendar | Leap years, 2 4-hour clock | | Real-time clock accuracy | Not more than ± 1 s/day | | Internal memory capacity for data | At least 2 GB | | Maximum recording period | At least 31 days | | Measurement time control | Automatic | | Maximum number of events | Limited only by the size of the internal memory | | Power requirements | 100 to 2 40 V rms ± 10 %, 47-63 Hz, 40 W | | Operating time during interruptions (internal UPS operation) | 5 minutes per interruption, 60 minutes total operating time without recharging | | Dimensions | 215 mm x 310 mm x 35 mm (8.5 in x 12.2 in x 3.5 in) | | Mass (weight) | 6.3 kg (14 lb) |
| | Input | | Measurement types | One Phase Plus Neutral, One Phase IT No Neutral, One Phase Split Phase, Three Phase Wye, Three Phase Delta, Three Phase IT, Three Phase High Leg, Three Phase Open Leg, 2 Element Delta, 21/2 Element Wye | | Input channels | Voltage: 4 channels, ac/dc | | Current: 5 channels | | Voltage channels | Input resistance: 2 MΩ | | Input capacitance: < 2 0 pF | | Current input characteristics | 2 V rms = full scale, 1 MΩ Input Impedance for ferro CTs, low impedance for Flexi-CTs | | Measuring method | Simultaneous digital sampling of voltage and current. Digital PLL synchronized sampling, internal frequency reference used during voltage drops. |
| | Synchronization and sampling | | PLL-synchronization source | The PLL synchronizes to the A-N voltage for wye power types, and to the A-B voltage for delta power types. All listed power types can be characterized as either wye or delta. | | PLL lock range | 42.5 to 69 Hz | | Sampling frequency | Voltage and current: 2 56 samples/cycle Inter-harmonics per IEC 61000-4-7: 2 560 points/10 cycles (50 Hz), 3072 points/12 cycles (60 Hz) Transient Voltage: 5 MHz | | A/D resolution | Voltage and current: 2 4 bits | | Transient voltage: 14 bits |
| | Voltage and current measurements | | Voltage measurement range | AC voltage: 1000 V rms ± 10 % over range | | DC voltage: ± 1000 V + 10 % over range | | Voltage crest factor | 3 or less | | Current measurement range | Depends on current probe used | | Current crest factor | 4 or less |
| | RMS voltage | | Measurement type | True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by IEC 61000-4-30. | | Measurement uncertainty | AC: ± 0.2 % reading ± 0.1 % full scale, above 50 V rms | | DC: ± 0.5 % reading ± 0.2 % full scale, above 50 V dc |
| | RMS current | | Measurement type | True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards |
| | Transient voltage (impulse) | | Measurement type | Waveshape sampling | | Full scale | 8000 V pk | | Sample resolution | 200 nS | | Measurement uncertainty | ± 5 % reading ± 2 0 V (test parameters: 1000 V dc, 1000 V rms, 100 kHz) |
| | Voltage swell (rms swell) | | Measurement type | True rms (one cycle calculation by overlapping each half cycle - voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines) | | Displayed data | Amplitude and duration of swell | | Measurement | Same as rms voltage |
| | Voltage dip (rms sag) | | Measurement type | True rms (one cycle calculation by overlapping each half cycle - voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines) | | Displayed data | Amplitude and duration of dip or interruption | | Measurement | Same as rms voltage |
| | Voltage dropout (interruption) | | Measurement type | Same as voltage dip |
| | LAN interface | | Connector | RJ-45 | | Speed and type | 10/100 Base-T, auto MDIX | | Communications protocol | TCP/IP over Ethernet |
| | Wireless controller interface | | Connection | wireless (2.4 GHz radio) | | Speed | up to 700 kbit/second | | Communications protocol | Bluetooth SPP |
|
| Power Measurements | | Power, battery life | | Measurement type | True rms calculated continuously: every cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards |
| | Frequency | | Measurement range | 42.5 to 69 Hz | | Measurement source | Same as PLL synchronization source | | Measurement accuracy | ± 10 mHz (10 to 110 % of range, with sine wave) |
| | Power Factor | | Measurement range | 0.000 to 1.000 | | Measurement accuracy | ± 1 digit from the calculation of each measured value (±3 digits for total) |
| | Displacement power factor | | Measurement method | Calculated from the phase difference between voltage fundamental and current fundamental | | Measurement range | - 1.000 (leading) to + 1.000 (lagging) | | Measurement accuracy | ± 0.5 % reading ± 2 % full scale ± 1 digit |
| | Voltage unbalance and phase sequence | | Measurement method | Positive sequence voltage divided by negative sequence voltage, per IEC 61000-4-30 |
| | Harmonic voltage and current | | Analysis window | rectangular | | Analysis order | 1st to 50th order | | Measurement accuracy | Voltage / Current: 1st to 2 0th orders: ± 0.5 % reading ± 0.2 % full scale, 2 1st to 50th orders: ± 1 % reading ± 0.3 % full scale (current sensor accuracy must be included for current and power) | | Measurement method | IEC 61000-4-7 |
| | Inter-harmonic voltage and current (intermediate harmonics) | | Analysis window | rectangular | | Analysis orders | 1.5 to 49.5th order | | Measurement method | IEC 61000-4-7 |
| | Flicker | | Measurement method | IEC 61000-4-15 | | Plt for 2 hours and PSt for 10 minutes | | Measuring range: | 0,1 to 5 (25) depending on voltage level, modulation and frequency |
|
| Environmental Specifications | | Environmental | | Operating environment | Indoors or in covered area outdoors, up to 2 000 m altitude | | Storage temperature and humidity | -20 °C to 50 °C, 80 % RH max, non-condensing | | Operating temperature and humidity | 0 °C to 40 °C, 80 % RH max, non-condensing |
| | Maximum rated working voltage | | Voltage terminals | 1100 V rms | | Voltage durability | 5550 V rms ac for 1 minute, between voltage input terminals, voltage input terminals and current probes, and voltage input terminals and case (50/60 Hz, 1 mA sense current) | | Enclosure protection | IP30 (per EN 60529) |
| | Standards: | | EMC | EN 61326-1:1997+A1:1998 Class A | | EN 61000-3-2:1995+A1:1998+A2:1998 | | EN 61000-3-3:1995 | | Safety | EN 61010-1 2 nd Edition; 2 000 | | Voltage input unit: Contamination Level 2 , Overvoltage Category 1000 V CAT III, 600 V CAT IV (anticipated overvoltage: 8000 V) |
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Descripcion
Grabe todos los parámetros de calidad de energía, en todos los ciclos, todo el tiempo.
Poner un analizador de calidad de energía a capturar datos detallados de calidad de energía nunca había sido tan fácil como lo es con el Fluke 1750. Lo único que usted necesita saber son el voltaje, la frecuencia, y la configuración (delta o 'Y') del sistema. El analizador entonces captura los datos más importantes por hasta 30 días sin perder los detalles más importantes. Estos medidores de energía graban automáticamente todos los parámetros de calidad de energía y los eventos - todo el tiempo. Una vez capturados los datos, descárguelos a través de Ethernet o directamente a una tarjeta SD de 2GB (sin la necesidad de ningún otro dispositivo). El Fluke 1750 cuenta con un panel frontal inalámbrico para visualizar mediciones, datos y configuración, implementado a través de una computadora tablet utilizando comunicación Bluetooth.

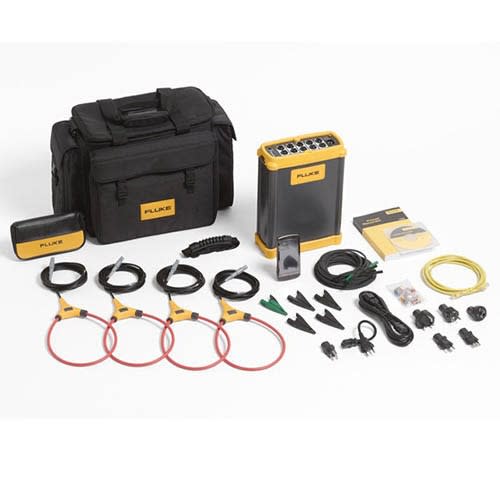

- Este modelo incluye: 4 sondas flexibles de corriente 3210-PR-TF iFlex de 1,000A
- Calidad de energía que cumple con el estándar: Todas las mediciones cumplen con los estándares IEC61000-4-30 para la evaluación correcta de todos los valores medidos incluyendo voltaje, corriente, potencia, armónicos, parpadeo, etc.
- Configuración rápida y confiable: Tableta basada en Android proporciona una ventana hacia lo que el instrumento está grabando, permitiendo configurar de manera rápida y confiable incluso en ubicaciones de prueba incómodas
- Configuración libre de umbrales: Aplique umbrales posterior a que los datos hayan sido recolectados utilizando el software Fluke Power Analyze - no hay necesidad de preocuparse por información omitida debido a configuraciones incorrectas
- Captura todo: Los disparos de canal cruzado y de corriente capturan todas las mediciones en todos los canales, en toda ocasión
- Software intuitivo de PC: Analice datos y genere reportes fácilmente con reportado y cumplimiento automatizado EN50160
- Reportar nunca ha sido más fácil: Auto Report crea tanto reportes estándar como reportes personalizados con el mínimo esfuerzo o molestia
- Conecte y utilice: Configure en minutos utilizando sondas de corriente auto-identificables y conexiones de voltaje de una sola punta
- No hay necesidad de reconectar cables: Intercambie canales internamente con el PDA inalámbrico o PC cuando las conexiones no están correctas
- Mida todo parámetro: Voltaje y corriente en 3 fases, neutral y tierra
- Captura de forma de onda a 5 MHz, 8000 Vpk: Obtenga una imagen detallada de incluso los eventos más cortos
- Recupere los datos rápidamente: Con la tarjeta de memoria SD incluída o a través de la conexión Ethernet de alta velocidad 100BaseT. La tarjeta SD incluye descarga automática a SD cuando no se hayan hecho otras conexiones al instrumento
|
|
|
|
|
|
|
|
|
