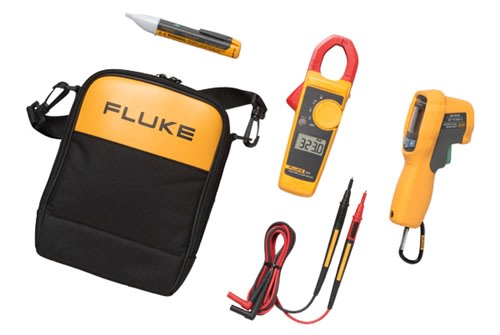

Fluke 62 MAX+/323/1AC
| Specifications | ||
| Temperature range | -30°C to 650°C (-22°F to 1202°F) | |
| Accuracy | ±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 | |
| Response time (95%) | < 300 ms (95% of reading) | |
| Spectral response | 8 to 14 microns | |
| Emissivity | 0.10 to 1.00 | |
| Optical resolution | 12:1 (calculated at 90% energy) | |
| Display resolution | 0.1°C (0.2°F) | |
| Repeatability of readings | ±0.5% of reading or < ±0.5°C (1°F), whichever is greater | |
| Power | AA battery | |
| Battery life | 8 hours with laser and backlight on | |
| Physical Specifications | ||
| Weight | 255 g (8.99 oz) | |
| Size | 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in) | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage temperature | -20°C to 60°C (-4°F to 140°F), (without battery) | |
| Operating humidity | 10% to 90% RH non-condensing at 30°C (86°F) | |
| Operating altitude | 2000 meters above mean sea level | |
| Storage altitude | 12,000 meters above mean sea level | |
| IP rating | IP 54 per IEC 60529 | |
| Drop test | 3 meters | |
| Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms | |
| EMC | EN 61326-1:2006 EN 61326-2:2006 | |
| Standards and agency approval | Compliance | EN/IEC 61010-1: 2001 |
| Laser safety | FDA and EN 60825-1 Class II | |
| Specifications | ||
| AC current | Range | 400.0 A |
| Accuracy | 2% ±5 digits (45 Hz to 65 Hz) 2.5% ±5 digits (65 Hz to 400 Hz) | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ±5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ±5 digits | |
| Resistance | Range | 400.0 Ω/ 4000 Ω |
| Accuracy | 1.0% ±5 digits | |
| Continuity | ≤ 70 Ω | |
| AC response | True-rms | |
| Data hold | Yes | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 265 g | |
| Category rating | CAT III 600 V CAT IV 300 V | |
| Warranty | Two-year | |
| Specifications | ||
| Operating principle | Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. | |
| Voltage sensing ranges | Nominally, 90 VAC to 1000 VAC or 200 VAC to 1000 VAC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model | |
| Detector tip style | Blade or round, depending on model | |
| Light source | One high intensity red LED | |
| Agency approvals | c CSA us, CE, C-Tick | |
| Safety rating | 1000 V, CAT IV | |
| IP rating | IP 40 | |
| Operating temperature | -10°C to 50°C | |
| Operating humidity ranges | 0% to 95% | (0°C to 30°C) |
| 0% to 75% | (30°C to 40°C) | |
| 0% to 45% | (40°C to 55°C) | |
| Operating altitude | 3000 meters | |
| Batteries | 2 AAA alkaline batteries included | |
| Product does not respond to random electrostatic discharge. | ||
