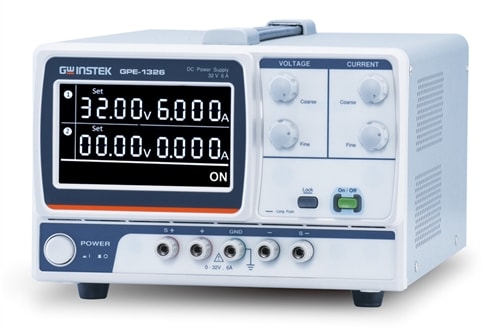

GW Instek GPE-1326, Fuente de Alimentación Lineal DC, 1 canal, 0 a 32V/0 a 6A

GPE-4323

GPE-3323

GPE-2323

GPE-1326

Output Mode

Number of Channel

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH1

CH2

CH1

Voltage

0~32V

0~32V

0~5V

0~15V

0~32V

0~32V

5.0V

0~32V

0~32V

0~32V

Current

0~3A

0~3A

0~1A

0~1A

0~3A

0~3A

5A

0~3A

0~3A

0~6A

Tracking Series Voltage

0~64V

----

0~64V

----

0~64V

----

Tracking Parallel Current

0~6A

0~6A

0~6A

Constant Voltage Operation

Line Regulation

≦0.01%+3mV

Load Regulation

≦0.01%+3mV(rating current ≦3A)

≦0.02%+5mV(rating current ＞3A)

Ripple & Noise

≦1mVrms(5Hz~1MHz)

Recovery Time

≦100μs(50% Load Change, minimum load 0.5A)

Constant Current Operation

Line Regulation

≦0.2%+3mA

Load Regulation

≦0.2%+3mA

Ripple & Noise

≦3mArms

Tracking Operation(CH1,CH2)

Tracking Error

≦0.1%+10mV of Master(0~32V) No Load , with Load add load regulation≦100mV)

Parallel Regulation

Line: ≦0.01%+3mV

Load:≦0.01%+3mV(rating current≦3A)

≦0.02%+5mV(rating current＞3A)

Series Regulation

Line: ≦0.01%+5mV

Ripple & Noise

Load:≦100mV

CH3 Operation for (GPE-3323)

Output Voltage

5.0V, ±5%

Output Current

5A

Line Regulation

≦3mV

Load Regulation

≦5mV

Ripple & Noise

1mVrms(5Hz~1MHz)

Meter

Voltage Resolution

10mV

Current Resolution

1mA

Setting Accuracy

Voltage±(0.1% of reading +30mV)

Current±(0.3% of reading +6mA)

Readback Accuracy

Voltage±(0.1% of reading +30mV)

Current±(0.3% of reading +6mA)

Insulation

Chassis and Terminal

20MΩ or above (DC 500V)

Chassis and AC Cord

30MΩ or above (DC 500V)

Environment Condition

Operation Temp

0~40℃

Storage Temp

-10~70℃

Operating Humidity

≦80% RH

Storage Humidity

≦70% RH

Other　

Power Source

AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz

Dimensions & Weight

210(W)x 155(H) x 306(D) mm ; Approx. 7kg
