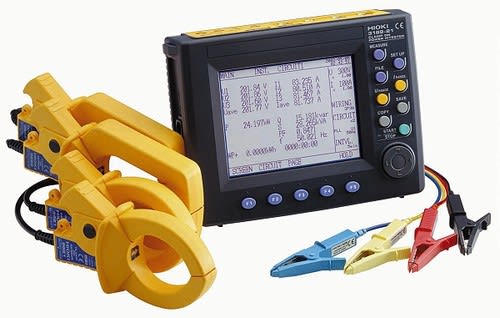

Hioki 3169-20 Analizador de potencia digital sin puntas de corriente

Codigo del Producto: 3169-20

Llamar para precio y disponibilidad

Ctd:

Ver Hoja de Datos en formato PDF

Hioki 3169-20 & 3169-21
Clamp On Power HiTesters

Offering a new approach to energy-related measurement

· Measure up to 3-phase, 3-wire system (displays voltage and current for three lines)

· Measure up to four single-phase, 2-wire systems

· 5A to 5000A range

· Compact and light weight

· PC card data storage

· Power recording for individual waveforms

· Simultaneous recording of demand values and harmonics

Specifications.

Measurement lines

Single-phase two-wires, Single-phase three-wires,

Three-phase three-wires, Three-phase four-wires

Voltage range

ch1, ch2, ch3:150/300/600V

ch4: 60/150/300/600V(AC), 60/600V(DC)

Current range

9660: 50/100A, 9661:50/500A, 9667:500/5000A, 9669:1000A

Measurement

method

Transient overvoltage: 2MHz/s

Arithmetic operation: 256points/cycle

Harmonic/Inter-harmonic:

2048points/10cycles (for 50Hz)

2048points/12cycles (for 60Hz)

Measurement

Function

1.Transient overvoltage

2.Voltage swell, Voltage dip, Voltage interruption

3.Frequency, Voltage, Current, Voltage/Current peak,

Active/Reactive /Apparent power, Power factor, DPF

4.Voltage unbalance ratio, Current unbalance ratio

5.Harmonic voltage/current/power,

Inter harmonic voltage/current,

Harmonic voltage current phase angle,

Total harmonic/inter harmonic distortion

6.IEC flicker[Pst, Plt], K factor

/ ∆V10(Japan)

Internal memory

13 MB

Interface

PC card (Flash ATA card / up to 528 MB)

RS-232C, LAN (10BASE-T), HTTP server function

Power supply

9458 AC adapter or 9459 battery pack

Dimensions, mass

298W×215H×67D mm, 2.0 kg

Accessories

Voltage cord (1set), 9458 AC adapter (1), 9459 Battery pack (1),

strap (1)

Measurement line type Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems (50/60 Hz)
Number of systems that can be measured (for systems that share the same voltage) Single-phase: 1P2W 4 systems
1P3W 2 systems
Three-phase: 3P3W2M (measures the voltage and current for two lines) 2 systems
3P3W3M (measures the voltage and current for all three lines) 1 system
3P4W (measures the voltage and current for three lines) 1 system
3P4W4I (measures the voltage for three lines and the current for four lines) 1 system
Measurement item Voltage, current, active power, reactive power, apparent power, power factor, integrated value, frequency, harmonics
Measurement range Voltage: 150 V to 600 V, 3 ranges
Current (When using 9660):5 A to 100 A, 4 ranges
Current (When using 9661): 5 A to 500 A, 5 ranges
Current (When using 9669): 100 A to 1 kA, 3 ranges
Current (When using 9667): 500 A / 5 kA, 2 ranges
Current (When using 9694): 0.5 A to 5 A, 3 ranges
Power: 75 W to 9 MW, 108 combination patterns
Basic accuracy ±0.2% rdg. ±0.1% f.s. + clamp-on sensor accuracy (active power, at 45 to 66 Hz)
Clamp sensor accuracy 9660 (rated for 100 A): ±0.3% rdg. ± 0.02% f.s.
9661 (rated for 500 A): ±0.3% rdg. ±0.01% f.s.
9669 (rated for 1000 A): ±1.0% rdg. ±0.01% f.s.
9667 (rated for 5000 A): ±2.0% rdg. ±1.5 mV
9694 (rated for 5 A): ±0.3% rdg. ±0.02% f.s.
* f.s. is the sensor's rated primary current value.
Frequency characteristic Fundamental waveforms up to the 50th order ±3% f.s. + measurement accuracy (of a 45- to 66-Hz fundamental waveform)
Other functions * PC card (1 slot, PC Card Standerd-compliant Type II, Flash ATA card type),
(9726/ 9727/ 9728 PC card, 128MB to 512MB)
* RS-232C (Printer or PC connected to an RS-232C interface),
* D/A output (3169-21 only, 4 channels),
* External I/O
Display update rate Approx. every 0.5 seconds
(except when using a PC card while accessing the internal memory, or when performing RS-232C communications)
Power supply voltage rating 100 to 240 V AC, 50/60 Hz
Dimensions and weight 210W × 160H × 60D mm ±5 mm (excluding protrusions), 1.2 kg ±100 g (3169-20, 3169-21)
Accessories voltage cord set 9438-03 (1) (1 cord each of black, red, yellow, and blue), voltage cord (1), power cord (1), input cord label (1), operating manuals (2) (Advanced edition and Quick Start Guide), CD-R (1) (Advanced edition and RS-232C interface operating manuals), connection cable 9441 (1) (for the 3169-21 only)
