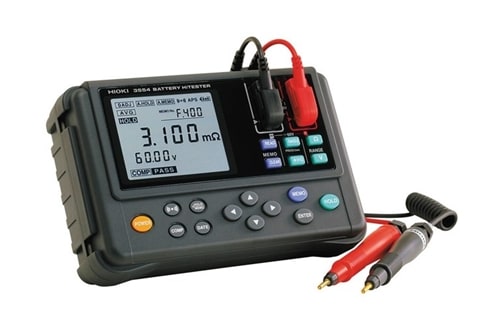

BT3554
| Resistance measurement range | 3 mΩ (Max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (Max. display 3.100 Ω, resolution 1 mΩ), 4 ranges Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.) Testing source frequency: 1 kHz ±30 Hz, With function for avoiding noise frequency enabled: 1 kHz ±80 Hz, Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range), Open-circuit Voltage: 5 V peak |
|---|---|
| Voltage measurement range | ± 6 V (Max. display ±6.000 V, resolution: 1 mV) to ± 60 V (Max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt. |
| Absolute max. input voltage | 60 V DC max. (No AC input) |
| Display update rate | Approx. 3 times/s |
| Comparator functions | Setting: First and second resistance limits, and lower voltage limit; Number of comparator setting: 200 sets Comparator output: LCD display of PASS, WARNING, or FAIL. (Select beeper to sound on PASS/WARNING or FAIL) |
| Data storage | Max. storable data: 6000 sets. (Saved items: Date, time, resistance value, voltage value, temperature, comparator setting values, and comparator judgement.) |
| Communication interface | Via USB (forward the data to the PC, bundled software for the BT3554 only) |
| BT3554-01 only: Built in Bluetooth® 4.0 LE (Bluetooth® SMART), supports tablets and smart phones with iOS8 or Android™4.3 or later GENNECT Cross (Free ware): Display list of measured values, generate reports, or display the trend (on the PC only) | |
| Other functions | Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock |
| Power supply | LR6 (AA) Alkaline dry battery ×8, Continuous operating time: 8.5 hr |
| Dimensions and mass | 192 mm (7.56 in)W × 121 mm (4.76 in)H × 55 mm (2.17 in)D, BT3554: 790 g (27.9 oz) (including batteries), BT3554-01: 800 g (28.2 oz) (including batteries) |
| Accessories | Zero adjustment board ×1, Instruction manual ×1, Precautions concerning use of equipment that emits radio waves (only for the BT3554-01) ×1, Application software CD ×1, Power-on option sticker ×1, Carrying case ×1, LR6 (AA) alkaline batteries ×8, Spare fuse ×1, USB cable ×1, Pin Type Lead 9465-10 ×1, Neck strap ×1 |
| Wireless certification | Japan, Unaited States, Canada, Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Korea, Singapore, Thailand, Australia, and New Zealand |
|---|---|
| Exempt from the wireless regulations | Viet Nam, Hong Kong, Macao, India, Russian Federation, Colombia, and Pakistan |
