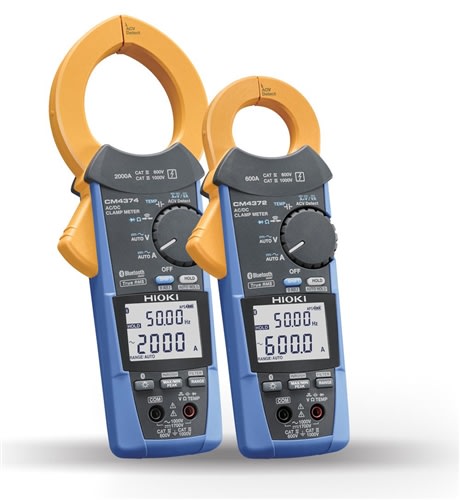

Hioki CM4372
Los medidores de gancho Hioki sondispositivos de medición de los mejores en su clase que incorpora laexperiencia de Hioki en la tecnología de detección de corriente. El modeloCM4372 es un medidor de gancho de valor verdadero RMS de 600A que cuenta con mandíbuasfuertes, rango de temperatura más amplio de -25°C a 65°C y una cubierta IP54 aprueba de polvo y a prueba de agua que permite a los profesionales trabajarrápidamente en situaciones difíciles, incluyendo el desarrollo, reparación ymantenimiento de equipos y dispositivos tales como vehículos eléctricos.Adicionalmente, la capacidad de medición de CD de alta tensión de hasta 1,700Ves ideal para las inspecciones de mantenimiento de gancho de equipo de energíaeléctrica y solar. Los valores medidos pueden ser enviados a un teléfonointeligente o tableta usando la tecnología inalámbrica Bluetooth y desplegadascomo formas de onda en tiempo real.
Características:
| DC Current | 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±8 dgt. |
|---|---|
| AC Current | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±3 dgt. |
| DC Voltage | 600.0 mV to 1500 V, 5 ranges, Basic accuracy: ±0.5% rdg. ±3 dgt. |
| AC Voltage | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt. |
| DC+AC Current | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy:±1.3% rdg. ±13 dgt. |
| DC+AC Voltage | 6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt. |
| Resistance | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt. |
| Electrostatic capacity | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Frequency | 9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Continuity check | Continuity threshold [ON]: 25Ω±10 Ω (Buzzor sound, red LED), Continuity threshold [OFF]: 245 Ω±10 Ω, Response time: 0.5 ms or more |
| Diode | Open terminal voltage: DC2.0 V or less, Short-circuit current: 200 μA, forward connection: 0.15 V to 1.8 V |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Voltage detection | Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| DC Power | Display range switching: 0.0 VA to 1020 kVA, Accuracy: ±2.0% rdg. ±20 dgt. |
| Crest factor | [600.0 A range] 500.0 A or less: 3; greater than 500.0 A and less than or equal to 600.0 A: 2.5, [2000 A range] 1000 A or less: 2.84; greater than 1000 A and less than or equal to 2000 A: 1.42 |
| Other functions | Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| Dustproof, waterproof | Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet. |
| Interface | Bluetooth® 4.0LE (Bluetooth® SMART), Supported devices: iOS 8 or later, Android™ 4.3 or later smartphone/tablet GENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function |
| Display | Update rate: 5 times/s (excluding electrostatic capacity, frequency, and temperature) |
| Power supply | LR03 Alkaline battery ×2, Continuous use: 24 hr (Backlight OFF, Bluetooth® ON), 45 hr (Backlight OFF, Bluetooth® OFF) |
| Core jaw diameter | 69 mm (2.72 in) W× 14 mm (0.55 in) D, φ33 mm (1.30 in) |
| Dimensions and mass | 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz) |
| Accessories | TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 |
Accesorios Incluidos:
