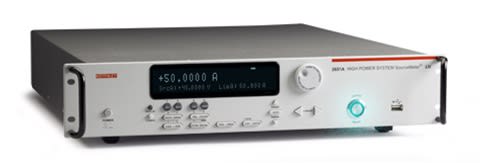

The high power Model 2651A is the newest addition to the Series 2600A family of System SourceMeter® instruments. Specifically designed to characterize and test high power electronics, it can help you improve productivity in applications across the R&D, reliability, and production spectrums, including high brightness LEDs, power semiconductors, DC-DC converters, batteries, and other high power materials, components, modules, and subassemblies.
The Model 2651A, like every Series 2600A SourceMeter instrument, offers a highly flexible, four quadrant voltage and current source/load coupled with precision voltage and current meters. It can be used as a:
* Semiconductor characterization instrument
* V or I waveform generator
* V or I pulse generator
* Precision power supply
* True current source
* Digital multimeter (DCV, DCI, ohms, and power with 5½-digit resolution)
* Precision electronic load
- Source or sink:
- 2,000W of pulsed power (±40V, ±50A)
- 200W of DC power (±10V@±20A, ±20V@±10A, ±40V@±5A)
- Easily connect two units (in series or parallel) to create solutions up to ±100A or ±80V
- 1pA resolution enables precise measurement of very low leakage currents
- 1µs per point (1MHz), continuous 18-bit sampling, accurately characterizes transient behavior
- 1% to 100% pulse duty cycle for pulse width modulated (PWM) drive schemes and device specific drive stimulus
- Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller - all in one instrument
- Includes TSP® Express characterization software, LabVIEW® driver, and Keithley's Test Script Builder software development environment
