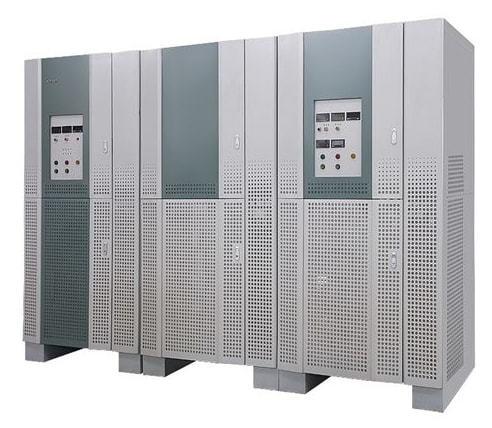

Preen AC Power AFC-33600
| Model | AFC-33006 | AFC-33010 | AFC-33015 | AFC-33020 | AFC-33030 | AFC-33045 | AFC-33060 | AFC-33075 | ||
| Capacity (kVA) | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 75 | ||
| Circuit Type | IGBT/PWM type | |||||||||
| Input | Phase | Three phase | ||||||||
| Wave | SINE WAVE | |||||||||
| Voltage | 220V/380V | |||||||||
| Voltage range | 220V/380V¡À15% | |||||||||
| Frequency range | 50Hz¡À3Hz »ò 60Hz¡À3Hz | |||||||||
| Power factor | 0.9 | |||||||||
| Output | Phase | Three phase | ||||||||
| Wave | SINE WAVE | |||||||||
| Voltage | Low | 5V-150V£¨L-N£© | ||||||||
| High | 10V-300V£¨L-N£© | |||||||||
| Frequency | 47~63Hz Adjustable£¬50Hz£¬60Hz£» 2F£¬4F£¬400Hz£¨Option£© | |||||||||
| Frequency regulation | ¨Q0.01% | |||||||||
Max. current | High (A) | 8.3 | 13.9 | 20.8 | 27.8 | 41.7 | 62.5 | 83.3 | 104.2 | |
| Low (A) | 16.7 | 27.8 | 41.7 | 55.6 | 83.3 | 125.0 | 166.7 | 208.3 | ||
| System | Line regulation | £¼1% | ||||||||
| Load regulation | ¡À1% (linear load) | |||||||||
| Total harmonic distortion (THD) | 2% (linear load) | |||||||||
| Efficiency | ¨R90% | |||||||||
| Response time | ¨Q2ms | |||||||||
| Wave factor | 3:1 | |||||||||
Protection device | Input no-fuse breaker, electronic circuit instant trip for over/low voltage, over current, over load, over temperature and short circuit protection and alarm system | |||||||||
| Indicator | Display | LED | ||||||||
| Voltage | Show range: 0~600V, analytic degree: 0.1V, accurate degree: 0.15%FS+4COUNT | |||||||||
| Current | Show range: 0~700A, analytic degree: 0.01A(<100A)/0.1A(¡Ý100A), accurate degree: 0.2%FS+4COUNT | |||||||||
| Power | Show range: 3kW~75kW, analytic degree: 0.01kW(<10kW)/0.1kW(¡Ý10kW), accurate degree: 0.3%FS+4COUNT | |||||||||
| Frequency | Show range: 0~999.9Hz, analytic degree: 0.1Hz, accurate degree: 0.1% | |||||||||
| Environment | Insulation resistance | DC500V ¨R 20M¦¸ | ||||||||
| Withstand voltage insulation | AC 1800V 5mA/ 1Min | |||||||||
| Cooling system | Fan cooling | |||||||||
| Temperature | 0¡æ~40¡æ | |||||||||
| Humidity | 0~90% (Non-condensing) | |||||||||
| Altitude | ¨Q 1500m | |||||||||
| Case No. | ¢Û ¡¡ | ¢Ü¡¡ | ¢Ý | |||||||
| Weight(kg) | 200 | 230 | 300 | 310 | 390 | 550 | 580 | 670 | ||
