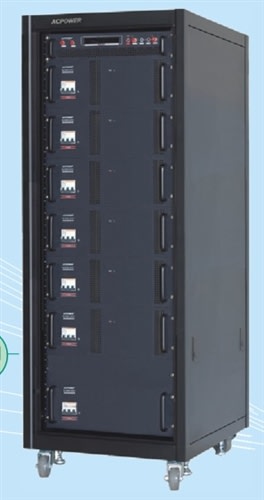

Preen DC Switching Pwr. Supply ADC-48kW
Fuente deAlimentación Conmutable de DC
La Serie ADC de fuentes depoder conmutables de DC adoptan la tecnología de modulación por ancho de pulso,con la ventaja de alta densidad de potencia, alto factor de potencia,funcionamiento perfecto de protección, rápida velocidad de respuesta y altaexactitud.
Esta serie tiene 3 unidadescon módulo de potencia con capacidad de 2kW, 4kW, 8Kw y pueden ser proveídascon gabinetes estándar 18U/32U/42U de 19” y unidad de supervisión, compuestosde sistemas de potencia de DC (máxima capacidad hasta 64kW), provistos de unaconfiguración flexible que cumple con una variedad de necesidades de potencia.
AltaDensidad de Potencia
La altura del módulo depotencia de 2kW y 4kW es sólamente 2U, la del de 8kW es solo 4U.
Funciónde Multi-Protección:
Protección contra sobre voltaje,sobre corriente, corto circuito y sobre temperatura.
ControlRemoto:
El control remoto puede ser realizadocon interfase de monitor análogo, para monitorear del 0 al 100% el voltaje desalida y la corriente de salida.
GabineteEstándar de 19”
Ahorra espacio y puede seradaptado al ambiente del usuario.
CompensaciónSensitiva Remota
Puede compensar caída devoltaje a lo largo del cable de transmisión y resistencia de contacto. El rangode compensación es de 0-3V.
Input / Output | ||||||||
Input | Rated Voltage | 187̴253Vac, 1Ø2W+G | 187̴253Vac, 3Ø3W+G323̴437Vac, 3Ø3W+G | 187̴253Vac, 1Ø2W+G187̴253Vac, 3Ø3W+G323̴437Vac, 3Ø3W+G | ||||
Current | Please refer to the form "Input/Output Specification" | |||||||
Frequency | 47̴63 Hz | |||||||
Output | Capacity | 2kW | 4kW | 8kW | 24 kW max | 48 kW max | 64 kW max | |
Voltage | Please refer to the form "Input/Output Specification" | |||||||
Current | Please refer to the form "Input/Output Specification" | |||||||
Ripple | <0.15% | |||||||
Voltage Adjustment | 0̴100% adjustable | |||||||
Current limit adjustment | 10̴100% adjustable | |||||||
Over-voltage adjustment | 110% setting value̴110% given value adjustable | |||||||
Line Regulation | <±0.05% full scale | |||||||
Load Regulation | <±0.05% full scale | |||||||
Transient response time | <1ms (load changes from 50% to 100% or from 100% to 50%) | |||||||
Other Specification | ||||||||
Efficiency (at rated input, max load) | >0.85 | >0.89 | Depending on configuration | |||||
Circuit type | Switching power supply | |||||||
Protection function | Over voltage, over current, short circuit, over temperature | |||||||
Local control | Voltage meter | 3 1/2 digital meter | 4 digital meter | |||||
Current meter | 3 1/2 digital meter | 4 digital meter | ||||||
Indicator light | Abnormal, external control, constant voltage, constant current | |||||||
Pre-set | Output voltage, output current, output over current, reset | |||||||
Remote control | Compensation | 0̴3V | ||||||
Control | Output voltage, output current 0̴100% adjustable through external 0̴5Vdc Voltage | |||||||
External control and reset | ||||||||
Monitor | Remote control to output voltage, output current from 0 to 100% through external 0̴5Vdc voltage | |||||||
Environment | Operation temperature | 0̴50°C | ||||||
Storage temperature | -25̴65°C | |||||||
Humidity | 0̴90% (non-condensing) | |||||||
Cooling mode | Wind enter from the front and out in the back. Can be installed with rack from top to bottom. | |||||||
Noise | <55dB/1m (fan speed control) | |||||||
Withstand voltage | Input to crust 2200Vdc/1min without arc/4mA | |||||||
Insulation Resistance | Input to crust≥100MΩ (500Vdc) | |||||||
Electromagnetic Compatibility (EMC) | Input EMI filter | |||||||
Mechanical Specification | ||||||||
Input mode | Terminal strips | Air switch | ||||||
Output mode | Cooper busbar | |||||||
Structure | 19" (483 mm), xU rack type | |||||||
Dimension WXDXH (mm) | 430X500X88 | 430X500X176 | 600X700X1036 | 600X700X1659 | 600X700X2104 | |||
Weight(kg) | 14 | 17 | 30 | Depending on configuration | ||||
Input / Output Specification | ||||||||
Power Rating | 2 kW | 4 kW | 8 kW | 24 kW max | 48 kW max | 64 kW max | ||
Input | Rated Input Voltage(Vac) | Max Input Current (Aac) | ||||||
Single Phase 220 | 17 | 34 | `--- | The max input current of power unit X The number of power units configured | ||||
Three Phase 220 | `--- | 15 | 30 | |||||
Three Phase 380 | `--- | 9 | 18 | |||||
Output | Rated Output Voltage(Vdc) | Max Output Current (Adc) | ||||||
30 | 67 | 133 | 267 | The max output current of power unit X The number of power units configured | ||||
40 | 50 | 100 | 200 | |||||
60 | 33 | 67 | 133 | |||||
80 | 25 | 50 | 100 | |||||
100 | 20 | 40 | 80 | |||||
120 | 17 | 33 | 66 | |||||
160 | 13 | 25 | 50 | |||||
240 | 8 | 16 | 33 | |||||
330 | 6 | 12 | 24 | |||||
600 | 3 | 7 | 13 | |||||
