- 350 MHz bandwidth
- 1 GSa/Sec waveform output
- 14 bit vertical resolution
- 128 Million Points of Arbitrary Waveform Memory
- Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
- Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB
- Options including output amplifier (PA-1011), digital generator (DG-POD-A), and frequency hopping capability

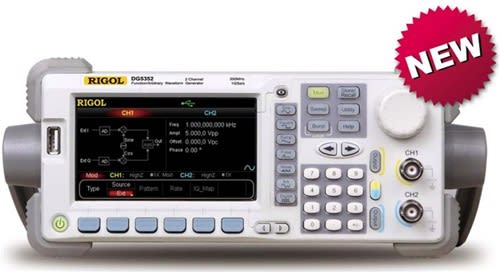

DG5351 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels.The DG5351 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.
