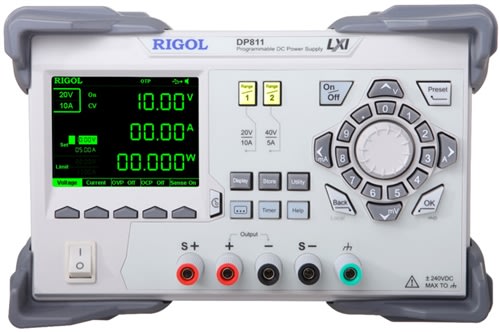

Model | DP811 |
Channels | 1 |
DC Output (0°C to 40°C ) | |
Voltage/current | 0 to 20 V/ 0 to 10 A (Low Range) or 0 to 40 V/0 to 5 A (High Range) |
OVP/OCP | 0.1 V to 22 V or 0.1 V to 44 V |
Load Regulation Rate ±(Output Percentage + Offset) |
Voltage | <0.01%+2mV |
Current | <0.01%+250uA |
Linear Regulation Rate ±(Output Percentage + Offset) |
Voltage | <0.01%+2mV |
Current | <0.01%+250uA |
Ripples and Noise (20Hz to 20MHz) |
Normal Mode Voltage | <350μVrms/2mVpp |
Normal Mode Current | <2mArms |
Common Mode Current | Not specified |
Annual Accuracy [1] (25°C ±5°C ) ±(Output Percentage + Offset) |
Programming | Voltage | 0.05% + 10mV |
Current | 0.1% + 10mA |
Readback | Voltage | 0.05% + 10mV |
Current | 0.1% + 10mA |
Resolution |
Programming | Voltage | 10mV |
| Current | 10mA |
Readback | Voltage | 1mV |
| Current | 1mA |
Display | Voltage | 10mV |
| Current | 10mA |
Transient Response Time |
Less than 50μs for output to recover to within 15mV following a change in output current from full load to half load or vice versa. |
Command Processing Time [2] |
<118ms |
Temperature Coefficient per degree C (Output Percentage + Offset) |
Voltage | 0.01%+3mV |
Current | 0.02%+3mA |
Stability [3] ±(Output Percentage + Offset) |
Voltage | 0.02%+1mV |
Current | 0.1%+1mA |
