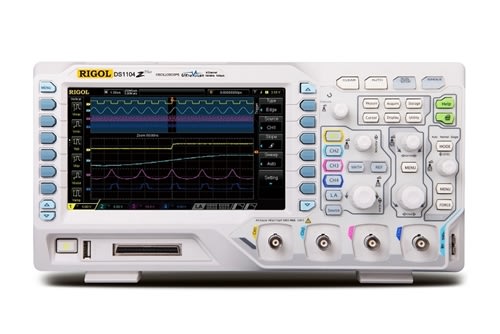

DS1104Z Plus
| Model | DS1054Z | DS1074Z Plus DS1074Z-S Plus | DS1104Z Plus DS1104Z-S Plus |
| Bandwidth | 50MHz | 70MHz | 100MHz |
| Channels | 4 | ||
| Maximum Sample Rate | 1GSa/s (1Ch), 500MSa/s (2Ch), 250MSa/s (3 or 4Ch) | ||
| Maximum Memory Depth | 12Mpts (24Mpts Optional) | ||
| Maximum Waveform Capture Rate | 30,000wfms/s | ||
| Time-Base Accuracy | ≤±25ppm | ||
| Time-Base Drift | ≤±5ppm/year | ||
| Time-Base Scale | 5ns/div to 50s/div | ||
| Input Impedance | 1MΩ ± 2% // 13pF ± 3pF | ||
| Vertical Scale | 1mV/div to 10V/div | ||
| DC Gain Accuracy | ±2% Full Scale (Channel 1), ±3% Full Scale (Channels 2, 3 & 4) | ||
| Bandwidth Limit | 20MHz | ||
| Real Time Waveform Record & Replay Function (Optional) | Up to 60,000 Frames | ||
| Standard Trigger Functions | Edge, Pulse Width, Slope, Video, Pattern, Duration | ||
| Optional Trigger Functions | RS232, I2C, SPI, Runt, Windows, Nth Edge, Delay, Time Out, Setup/Hold | ||
| Standard Bus Decoding | Parallel Bus | ||
| Optional Bus Decoding | RS232, I2C, SPI | ||
| Math Functions | A+B, A-B, AxB, A/B, FFT, AND, OR, NOT, XOR, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs | ||
| Auto Measurements | Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Single Period Vavg, Vrms, Single Period Vrms, Overshoot, Preshoot, Area, Period Area, Freq, Period, Rise Time, Fall Time, Width, -Width, Duty, -Duty, Delay A→B Rising Edge, Delay A→B Falling Edge, Phase A→B Rising Edge, Phase A→B Falling Edge | ||
| Connectivity | USB Host & Device, LAN(LXI), Aux Output (TrigOut, PassFail) Support USB-GPIB (Optional) | ||
| Display | 7" WVGA (800x480) TFT LCD, 64 Intensity Grading Level | ||
| Size (WxHxD) | 313.1mm x 160.8mm x 122.4mm | ||
| Weight | 3.2kg ± 0.2kg (without package) | ||
| Standard Probes | RP2200 150MHz BW Passive Probe: 4 sets | ||
| Built-In 2 Channel Waveform Generator | Not Available | '-S' Models Only 2 Channels 200MSa/s Sample Rate 14bits Vertical Resolution 25MHz Maximum Output Frequency 20mVpp - 5Vpp Amplitude Range (High Z) 16kpts Waveform Length Standard Waveforms - Sine, Square, Ramp, Pulse, Noise, DC Arbitrary Waveforms - Sinc, ExpRise, ExpFall, ECG, Gauss, Lorentz, Haversine, User Defined Modulation - AM & FM | |
| MSO Ready | Not Available | Yes Add 16 digital channels to your Rigol DS1000Z Plus oscilloscope simply by purchasing the Rigol MSO1000Z Upgrade Kit. Please note - The number of available analogue channels is reduced by 1 for every block of 8 digital channels in use. For example - If 9 to 16 digital channels are in use, the number of available analogue channels is 2. | |
